1956
1963
1998
2004
2008
2010

1956 Acquisition of license to manufacture batch mills

A special agitator shaft with symmetrically arranged agitator pegs and sleeves of tungsten carbide for wear protection devel- Vertical, batch operation mill for the preparation of tungsten Ideal flow behaviour due to a special agitator peg arrange-ment and the hemispherically shaped chamber floor integrated screen plate for grinding media separationIntensive cooling through a double-wall grinding tank and cooled circulation pipeline
查看詳細 >>
Development of the first continuous agitator bead mill

Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.
查看詳細 >>
Bottom up & Top down

Generally, there are two ways to obtain nano-powders. A bottom-up manufacturing method (bottom up) for chemical methods, such as chemical precipitation, sol-gel process (sol-gel),... Another method is physical method, which changes the powder particles from big to small (top down), such as mechanical ball milling,... And so on.
查看詳細 >>
Horizontal Disk Grinding Machines

The Development In 1963, the first vertical agitator was developed internationally, the first horizontal agitator was developed in 1975, the first horizontal agitator bead mill with eccentric disks was introduced to the public and the horizontal disc grinder was introduced， in 2004, which became the industry standard. In the following years, the grinding media separation systems, the geometry of the grinding disks and the various grinding chamber materials were further developed.
查看詳細 >>
Rod-pin nano-grinding Technology

The grinding system pin nanomill shows the evolutionary develop- ment of system with the rotor-slotted pipe separating system. The enclosed horizontal agitator mill is designed for highest product throughput rates and possesses a pin grinding system for highest grinding intensity.
查看詳細 >>
Ceramic comminution chamber technology

In 2011, we developed the first zirconia comminution chamber technology in China. It has no metal ion pollution and is used in batteries, pharmaceuticals, glazes, ink and food.
查看詳細 >>

> <

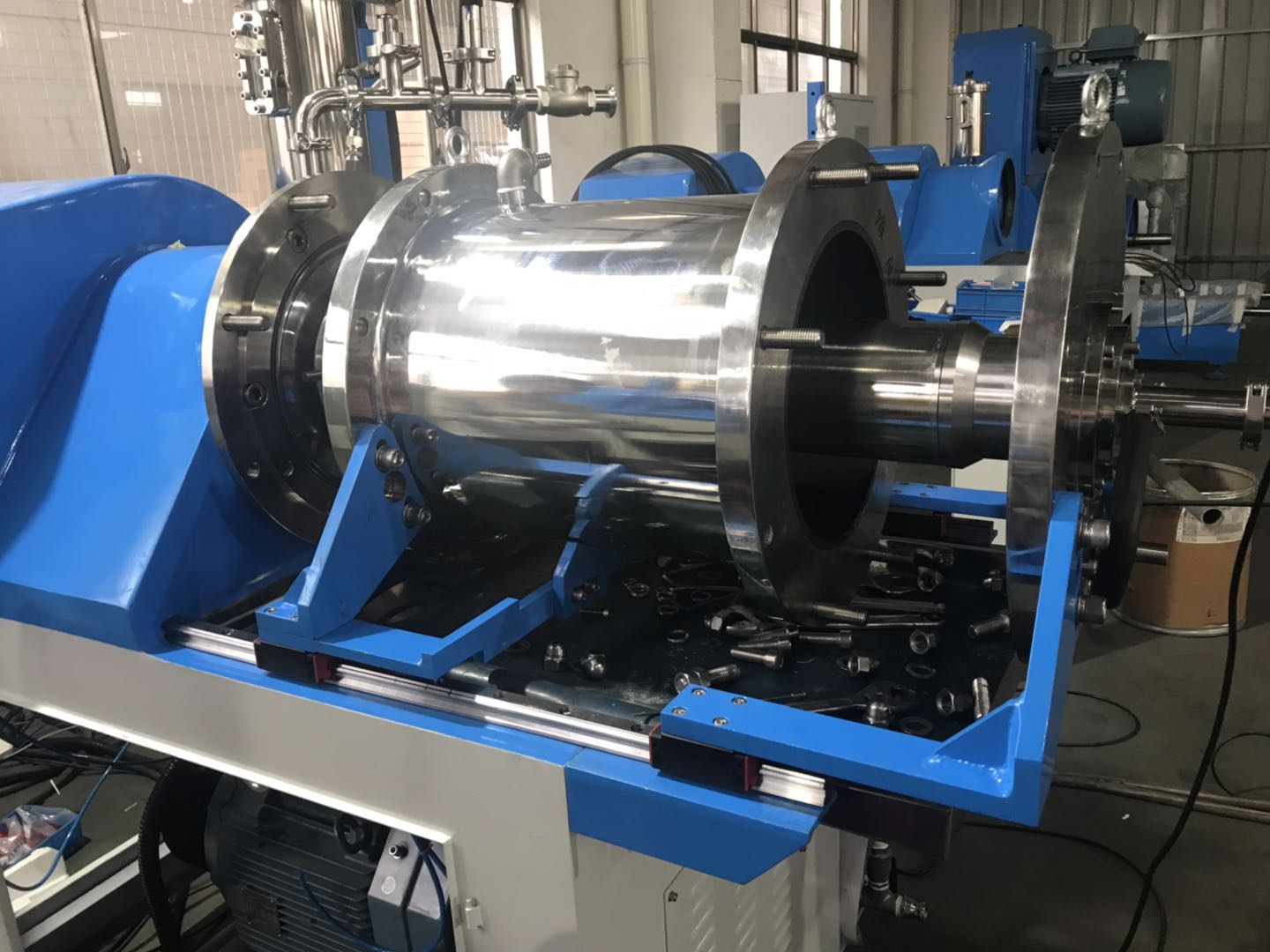

NMZ40納米砂磨機

NORVA諾研臥式納米砂磨機是一款真正的研磨至納米級范圍內的高端研磨機器，采用先進的銷棒研磨體系設計，轉子外表面安裝了大量耐磨鋼材質的棒銷，與定子形成了研磨腔，轉子旋轉形成強大研磨渦流撞擊和剪切力，將物料經動態分離器循環研磨，循環研磨工藝提高了生產效率和產品質量，降低了能耗，產品顆粒級配分布得以優化，物料研磨品質粒度分布窄，研磨細度可達50納米內。對于防金屬污染的物料，可采用陶瓷或聚氨酯結構材料。

報價需求聯系我們

產品總介參數應用

產品總介

NORVA諾研NNM05L實驗棒銷循環研磨機式基于實驗室平臺開發的，采用了模塊化設計，具有非常優秀的操作靈活性，其核心部件為“不銹鋼研磨腔、陶瓷腔或PU腔”，有效研磨容積為0.5-1L，特別適用于中等粘度的基礎性實驗。操著方便研磨細度D50≤50nm 重復性好循環研磨系統清洗方便研磨介質0.1mm-2mm 變頻速度

參數

技術數據：

研磨筒結構	轉子材質	研磨軸	分離系統（mm）	研磨筒體內襯材質	軸密封	研磨介質
夾套式可拆卸	GX進口硬質合金（德國） 94.7%氧化鋯陶瓷（日本）高密度聚氨酯（日本三菱）	不銹鋼碳鋼調質鍍鉻	DCC大流量動態分離器分離精度：0.05 -0.8mm	GX特耐磨鋼 95%氧化鋯陶瓷（合資）無壓燒結碳化硅陶瓷（FCT）	雙端面機械密封（Burgmann）	釔穩定氧化鋯珠（日本YTZ）釔穩定氧化鋯珠（法國Zir）

基礎數據：

Volume

容積（L）

Production volume

加工批量(L)

Speed

轉速((r/min)

Power

驅動功率（kw）

Fineness

細度（nm）

Length

長度（mm）

Width

寬度（mm）

Height

高度（mm）

Weight

重量（kg）

40L

500-2000

700-1000

37-45

≤50

1900

960

1800

2000

應用

科學與研究技術應用: 新材料、新技術研磨領域研究與發展工業以及學術界都需要可靠的結果。從實驗室測試到規模化生產，精確的預算顯得相當重要。無論是基礎研究，質量控制，產品和配方的開發或流程優化，您都可以依靠我們經過充分驗證的實..

電池材料: 諾研納米砂磨機廣泛應用于電池材料的研磨和分散，。鋰離子電池的正極材料主要有鈷酸鋰、錳酸鋰、鎳酸鋰、三元材料、磷酸鐵鋰等。其中鈷酸鋰是目前絕大多數鋰離子電池使用的正極材料...

油墨、顏料材料: “赤橙黃綠青藍紫”，五彩斑斕的世界需要什么，當然是顏色，她使萬物呈現色彩和物質。諾瓦納米研磨機正是這些美麗的制造者，從按照化學結構角度可以分成有機和無機著色劑兩大類。而顏料和染料的定義則又和著色劑在一
